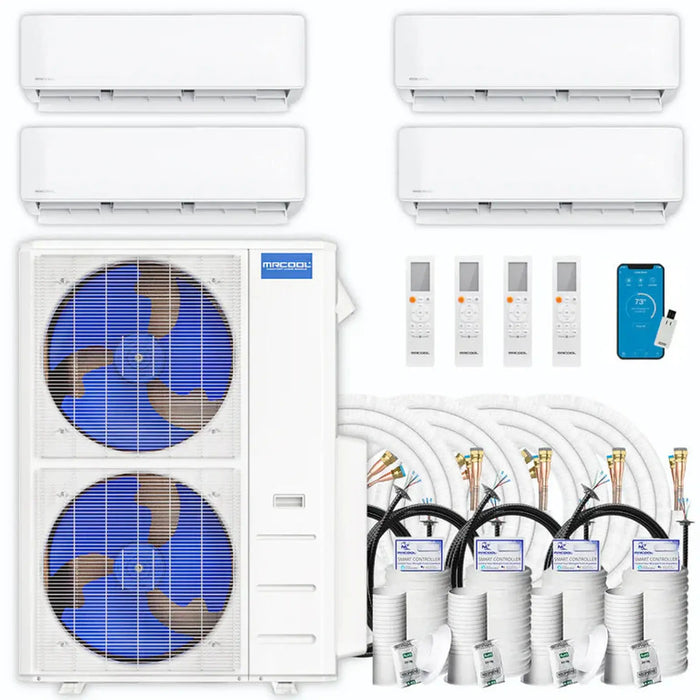

This 4th Generation MRCOOL Mini Split provides a comprehensive solution for cooling and heating up to four different rooms. Included in the package are the DIY 36,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handlers, two 12,000 BTU Wall Mounted Air Handlers, four Remotes, and four 35 ft. Installation Kits. The standout feature of this system is its DIY installation capability, allowing for easy setup without the need for specialized tools or expensive equipment.
Package Includes:
-
MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series: DIY-MULTI4-36HP230C
-
MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-09-HP-WMAH-230C25 (x2)
-
MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-12-HP-WMAH-230C25 (x2)
-
MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor: DIY35-1412C (x4)

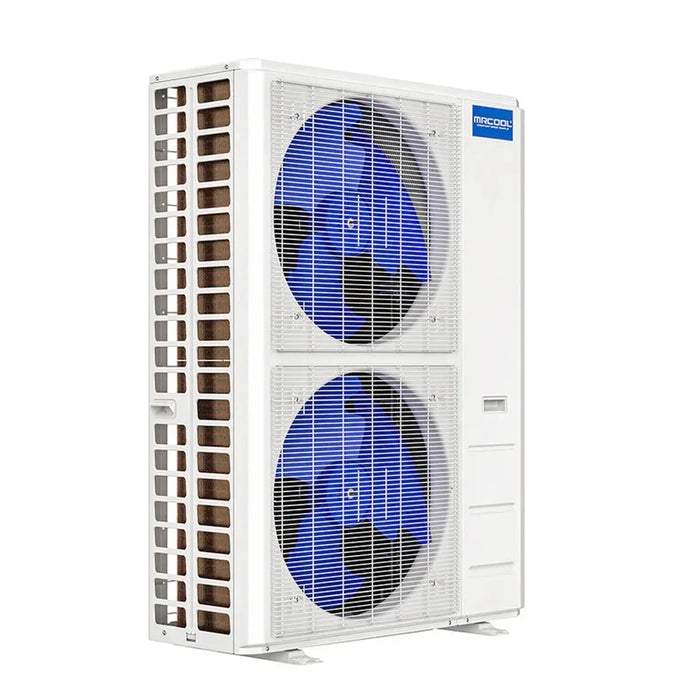

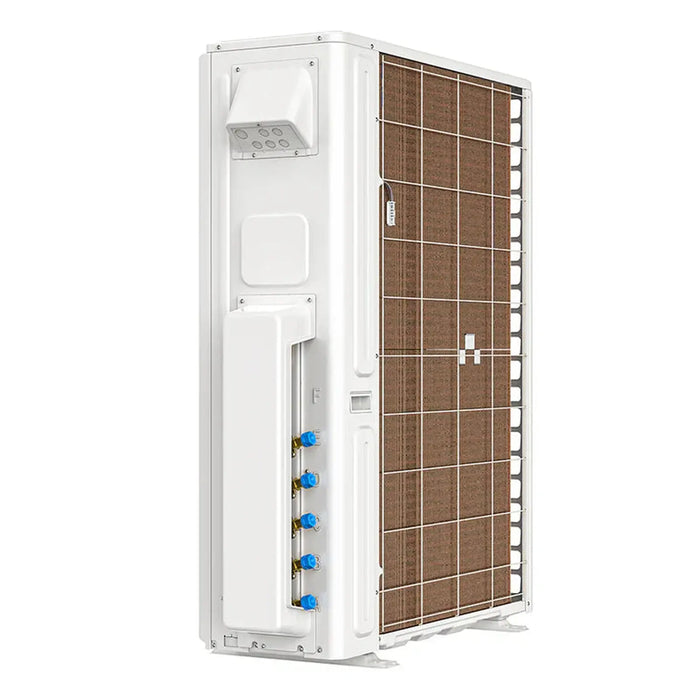

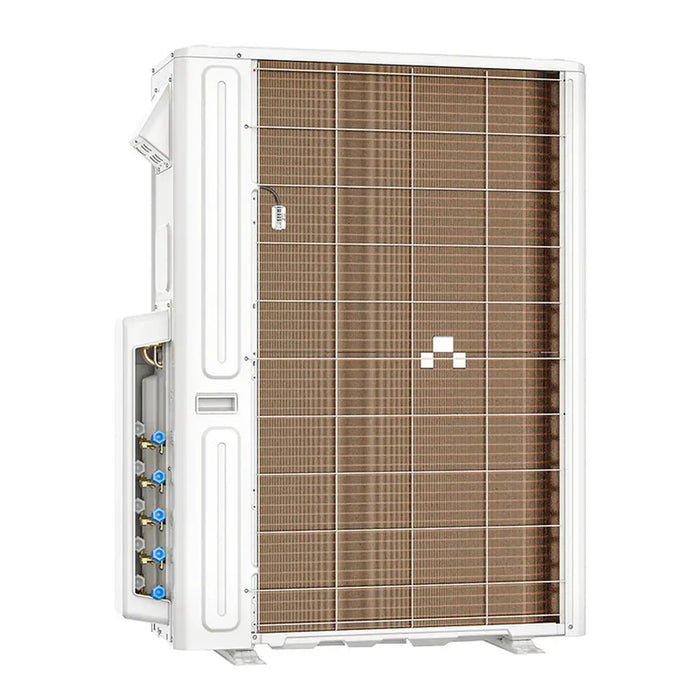

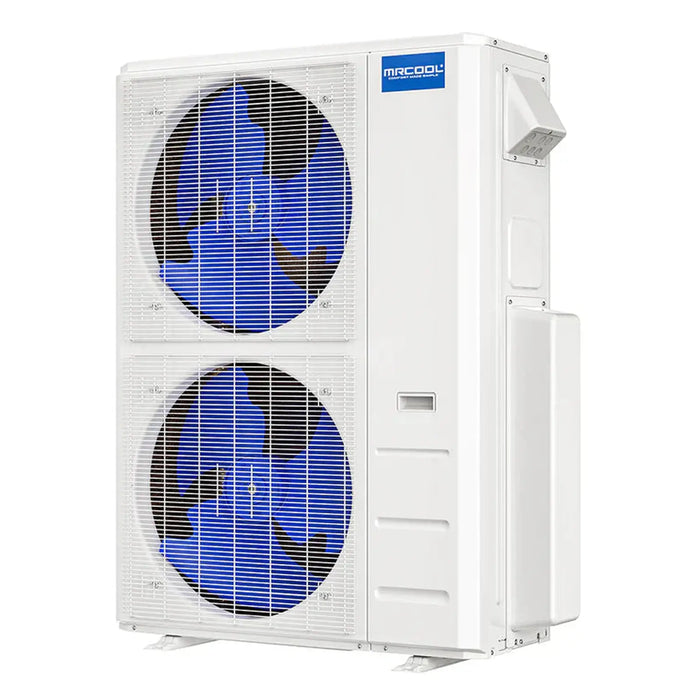

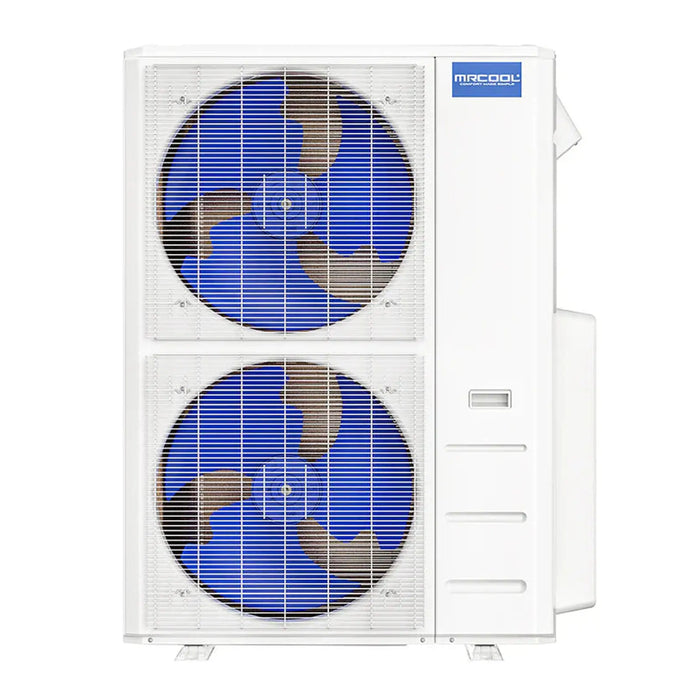

Condenser:
-
Energy Efficient: This 4 Zone condenser, when paired with select MRCOOL air handlers, achieves an impressive 21.5 SEER efficiency rating.
-
Works In All Environments: Capable of heating even when temperatures drop to -13°F.
-
Lifetime Warranty: The only condenser on the market with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to activate the warranty.
Air Handler, 9K BTU, Quantity 2:
-
Large Coverage Area: Each handler covers up to 375 sq. ft.
-
Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: Can be controlled via your Apple or Android smartphone using the Smart HVAC app.
-
Convenient Installation: Designed for easy installation on most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 2:
-
Large Coverage Area: Covers an area up to 500 sq. ft.
-
Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: Can be controlled via your Apple or Android smartphone using the Smart HVAC app.
-
Convenient Installation: Designed for easy installation on most interior walls with the included mounting plate.
Line Set 35 ft., Quantity 4:
-
Purpose: Connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure proper system function.
-
Pre-Charged: Comes pre-charged with the precise amount of R-410A refrigerant.
-
DIY & Save Money: Installation can be done without the need for a certified technician, saving you money.
Additional Line Sets & Coupler:
- Additional line sets are available for purchase if the default lengths are insufficient.
- A coupler kit is required for connecting two standard line sets together.
Included Installation Tools:
Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect Line Set (refrigerant pipe)*, Insulation Material, Non-Adhesive U.V. Tape, Drain joint, Neoprene.
