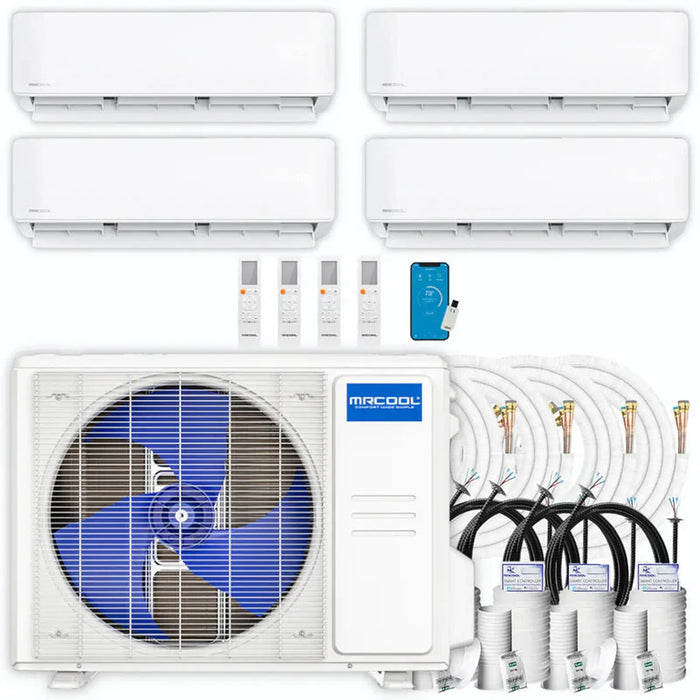

The 4th Generation MRCOOL Mini Split offers a comprehensive solution for cooling and heating four separate rooms. This package includes the DIY 36,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handlers, one 12,000 BTU Wall Mounted Air Handler, four Remotes, and four 50 ft. Installation Kits. What sets this system apart is its DIY installation feature, empowering users to set it up themselves.
The MRCOOL DIY Multi system incorporates enhanced Wi-Fi engineering, ensuring a quick and effortless setup process. Moreover, its flexibility allows for installation virtually anywhere without the need for specialized tools or expensive equipment.
Here's a breakdown of the package contents along with their respective SKUs:
- MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, SKU: DIY-MULTI4-36HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (quantity: 3)
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25
- MRCOOL DIY 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY50-1412C (quantity: 4)
If all air handlers run simultaneously, their combined BTU output will never exceed the BTU rating of the condenser, ensuring optimal performance.
Condenser Features:
- Energy Efficiency: This 4 Zone condenser, when paired with select MRCOOL air handlers, achieves an impressive 21.5 SEER efficiency rating.
- Versatility: Capable of heating even in temperatures as low as -13°F.
- Lifetime Warranty: Exclusive to this condenser is a limited lifetime compressor warranty, offering added peace of mind. Register into the MRCOOL Care Program to activate the lifetime warranty.
Air Handler, 9K BTU (Quantity: 3):
- Coverage: Each handler effectively covers an area up to 375 sq. ft.
- Versatility: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Control: Smart functionality allows control via Apple or Android smartphones using the Smart HVAC app.
- Installation: Lightweight and compact design ensures easy installation on most interior walls with the provided mounting plate.
Air Handler, 12K BTU (Quantity: 1):
- Coverage: This handler covers areas up to 500 sq. ft.
- Versatility, Control, and Installation features remain consistent with the 9K BTU model.
Line Set 50 ft. (Quantity: 4):
- Copper line set connecting the 4th Generation MRCOOL DIY Condenser to the MR COOL DIY Air Handlers - 9K, 12K and 18K.
- Pre-Charged: Comes pre-charged with the precise amount of R-410A refrigerant.
- DIY Installation: Allows for installation without professional assistance, saving on costs.
What accessories are included in this package?
This package also provides installation-friendly tools, such as the mounting plate (for the air handlers), anchor, mounting plate screws, remote control, fixing screw for remote controller holder (optional), remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), magnetic ring (optional), line-set adapter set (included with 4-zone & 5-zone systems only), batteries, air freshening filter, seal (for cooling & heating models), Allen wrench, installation & owner’s manual, remote control manual, Smart Controller Kit, plastic wall sleeve, sound deadening pads, drain pipe, cardboard mounting plate template, Quick Connect Line Set (refrigerant pipe)*, insulation material, non-adhesive U.V. tape, drain joint, neoprene.
