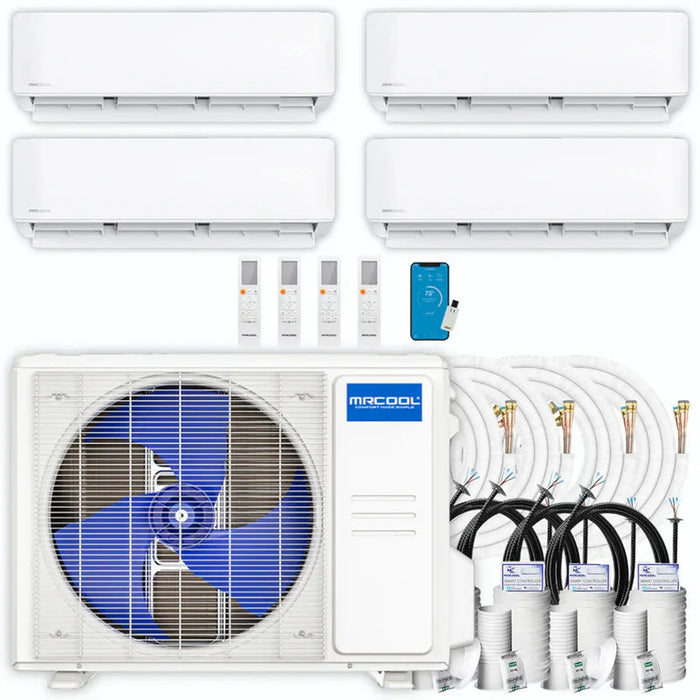

This 4th Generation MRCOOL Mini Split offers a comprehensive solution for cooling and heating four different rooms. Included in the package are: a DIY 36,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, three 12,000 BTU Wall Mounted Air Handlers, four Remotes, and four 35 ft. Installation Kits. The standout feature is the ability to install it yourself, thanks to its enhanced Wi-Fi engineering, making setup quick and easy without requiring specialized tools or expensive equipment.
Package Includes:
- MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series, DIY-MULTI4-36HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x3)
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25
- MRCOOL DIY 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation, DIY35-1412C (x4)
Condenser:
- Energy Efficient: This 4 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
- Works In All Environments: It can effectively heat even when temperatures drop to -13°F.
- Lifetime Warranty: For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 3:
- Large Coverage Area: Covers an area up to 375 sq. ft.
- Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control: This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation: With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 1:
- Large Coverage Area: Covers an area up to 500 sq. ft.
- Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control: This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation: With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Line Set 35 ft., Quantity 4:
- Pre-Charged: These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money: With DIY installation, you can save on technician fees.
Additional Line Sets & Coupler:
If the default line set lengths are not sufficient for your application, additional line sets are available for purchase. A coupler kit is also provided to connect two standard line sets together if required.
Installation Friendly Tools Included:
- Mounting plate (for the air handlers)
- Anchor
- Mounting plate screws
- Remote control
- Fixing screw for remote controller holder (optional)
- Remote control holder (optional)
- MRCOOL Mini-Stat (optional)
- MRCOOL Mini-Stat User Manual (optional)
- Magnetic Ring (optional)
- Line-Set Adapter Set (Included with 4-zone & 5-zone systems only)
- Batteries
- Air Freshening Filter
- Seal (for cooling & heating models)
- Allen Wrench
- Installation & Owner’s Manual
- Remote Control Manual
- Smart Controller Kit
- Plastic Wall Sleeve
- Sound Deadening Pads
- Drain Pipe
- Cardboard Mounting Plate Template
- Quick Connect Line Set (refrigerant pipe)*
- Insulation Material
- Non-Adhesive U.V. Tape
- Drain joint
- Neoprene
