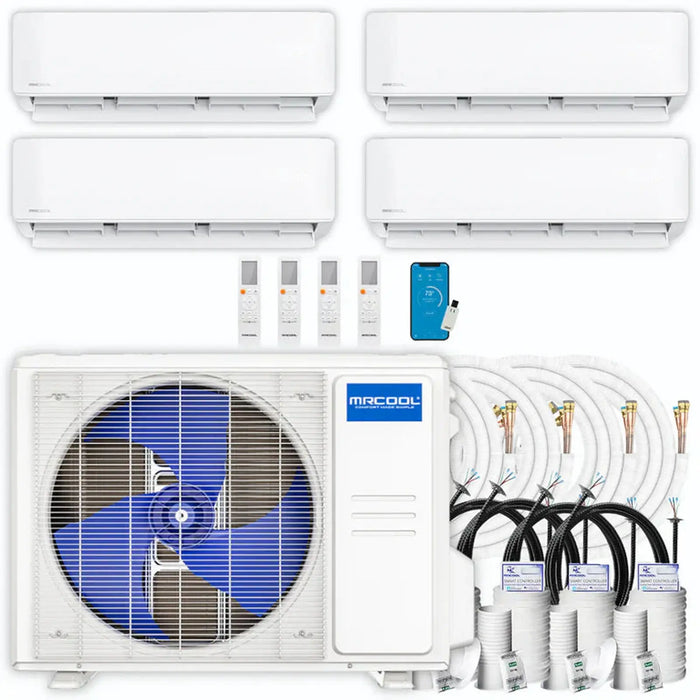

This 4th Generation MRCOOL Mini Split includes everything you need to cool and heat four different rooms. You'll receive a DIY 36,000 BTU Multi-Zone Condenser, three 9,000 BTU Wall Mounted Air Handlers, one 12,000 BTU Wall Mounted Air Handler, four remotes, and four 25 ft. Installation Kits. The best part about all of this is that you can install it yourself! This system includes enhanced Wi-Fi engineering to make setup not only quick and easy, but the MRCOOL DIY Multi is also flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.
Package Includes:
-
MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series: DIY-MULTI4-36HP230C
-
MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-09-HP-WMAH-230C25 (x3)
-
MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-12-HP-WMAH-230C25
-
MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor: DIY25-1412 (x4)
Note: This package does not include line sets. Don't forget to scroll up and add them!
Condenser:
-
Energy Efficient: This 4-zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 21.5 SEER efficiency rating.
-
Works in All Environments: Capable of delivering heating performance even when temperatures drop to -13°F.
-
Lifetime Warranty: For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 3:
-
Large Coverage Area: Each handler covers an area up to 375 sq. ft.
-
Versatile: Incredibly versatile and equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: This unit can be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
-
Convenient Installation: With its light and compact design, it can be easily installed on most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 1:
-
Large Coverage Area: Handler covers an area up to 500 sq. ft.
-
Versatile: Incredibly versatile and equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: This unit can be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
-
Convenient Installation: With its light and compact design, it can be easily installed on most interior walls with the included mounting plate.
Line Set 25 ft., Quantity 4:
-
Purpose: This 25 ft. copper line set connects the MRCOOL Condenser to the MRCOOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system functions properly.
-
Pre-Charged: These line sets come pre-charged with the precise amount of R-410A refrigerant.
-
DIY & Save Money: This means the installation process can be performed without the services of a certified technician, saving you money!
Additional Line Sets & Coupler:
If the default line set lengths are insufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.
What does this package include?
This package also includes installation-friendly tools: Mounting plate (for the air handlers), anchors, mounting plate screws, remote control, fixing screw for remote controller holder (optional), remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), magnetic ring (optional), Line-Set Adapter Set (included with 4-zone & 5-zone systems only), batteries, air freshening filter, seal (for cooling & heating models), Allen wrench, installation & owner's manual, remote control manual, smart controller kit, plastic wall sleeve, sound deadening pads, drain pipe, cardboard mounting plate template, Quick Connect line set (refrigerant pipe)*, insulation material, non-adhesive U.V. tape, drain joint, and neoprene
