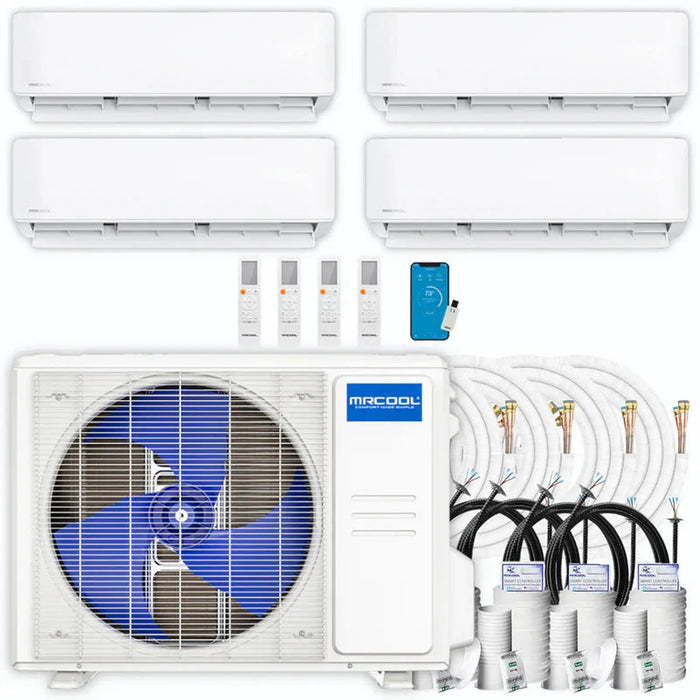

This 4th Generation MRCOOL Mini Split offers a comprehensive solution for cooling and heating four separate rooms. The package includes a DIY 36,000 BTU Multi-Zone Condenser, four 9,000 BTU Wall Mounted Air Handlers, four Remotes, and four 50 ft. Installation Kits. The highlight of this system is its DIY installation feature, allowing you to set it up yourself without the need for specialized tools or costly equipment.
Package Includes:
-
MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series: DIY-MULTI4-36HP230C
-
MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-09-HP-WMAH-230C25 (x4)
-
MRCOOL DIY 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation: DIY50-1412C (x4)
Condenser:
-
Energy Efficient: This 4 Zone condenser, when paired with select MRCOOL air handlers, boasts an impressive 21.5 SEER efficiency rating.
-
Works In All Environments: Capable of heating even when temperatures drop to -13°F.
-
Lifetime Warranty: Enjoy added peace of mind with the limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to activate the warranty.
Air Handler, 9K BTU, Quantity 4:
-
Large Coverage Area: Each handler covers up to 375 sq. ft.
-
Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: Control via your Apple or Android smartphone using the Smart HVAC app.
-
Convenient Installation: Designed for easy installation on most interior walls with the included mounting plate.
Line Set 50 ft., Quantity 4:
-
Purpose: Connects the 4th Generation MRCOOL Condenser to the MR COOL Air Handlers (9K, 12K, and 18K).
-
Pre-Charged: Comes pre-charged with the precise amount of R-410A refrigerant.
-
DIY & Save Money: Installation can be done without the need for a certified technician, saving you money.
Additional Line Sets & Coupler:
- If the default line set lengths are insufficient, additional line sets are available for purchase.
- A coupler kit allows connection of two standard line sets together.
Installation Tools Included:
- Mounting plate (for the air handlers)
- Anchor
- Mounting plate screws
- Remote control
- Fixing screw for remote controller holder (optional)
- Remote control holder (optional)
- MRCOOL Mini-Stat (optional)
- MRCOOL Mini-Stat User Manual (optional)
- Magnetic Ring (optional)
- Line-Set Adapter Set (Included with 4-zone & 5-zone systems only)
- Batteries
- Air Freshening Filter
- Seal (for cooling & heating models)
- Allen Wrench
- Installation & Owner’s Manual
- Remote Control Manual
- Smart Controller Kit
- Plastic Wall Sleeve
- Sound Deadening Pads
- Drain Pipe
- Cardboard Mounting Plate Template
- Quick Connect Line Set (refrigerant pipe)*
- Insulation Material
- Non-Adhesive U.V. Tape
- Drain joint
- Neoprene
