MRCOOL DIY Mini Split - 36,000 BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM336HPW02C28

The 4th Generation MRCOOL Mini Split system provides comprehensive cooling and heating solutions for three different rooms. This DIY-friendly package includes a high-efficiency multi-zone condenser, multiple air handlers with enhanced Wi-Fi capabilities, and all necessary installation kits. Designed for easy installation without specialized tools, it offers versatile operation modes and smart control options.

Package Includes

• DIY 36,000 BTU Multi-Zone Condenser
• Two 9,000 BTU Wall Mounted Air Handlers
• One 18,000 BTU Wall Mounted Air Handler
• Three Remotes
• Three 25 ft. Installation Kits

Components

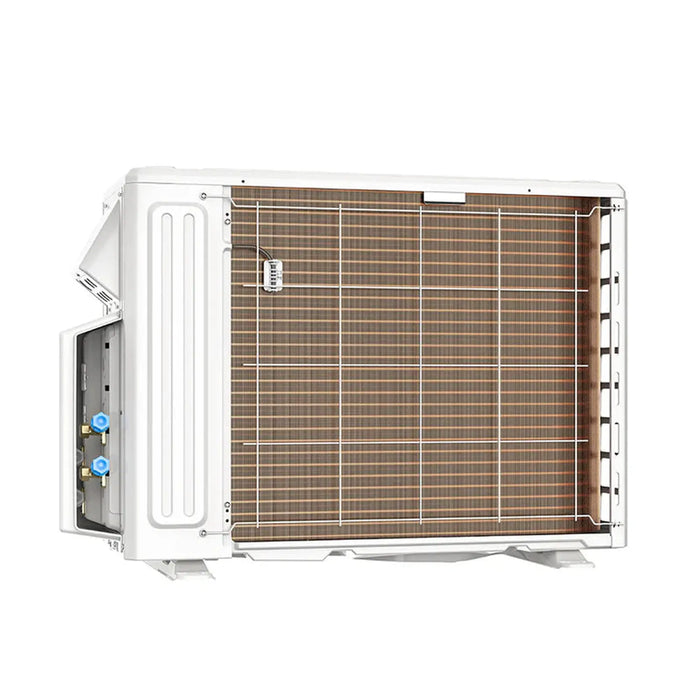

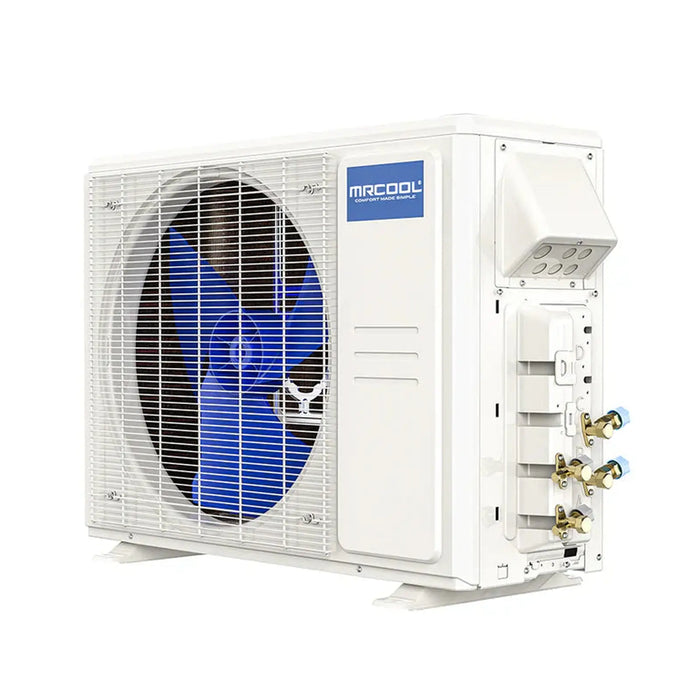

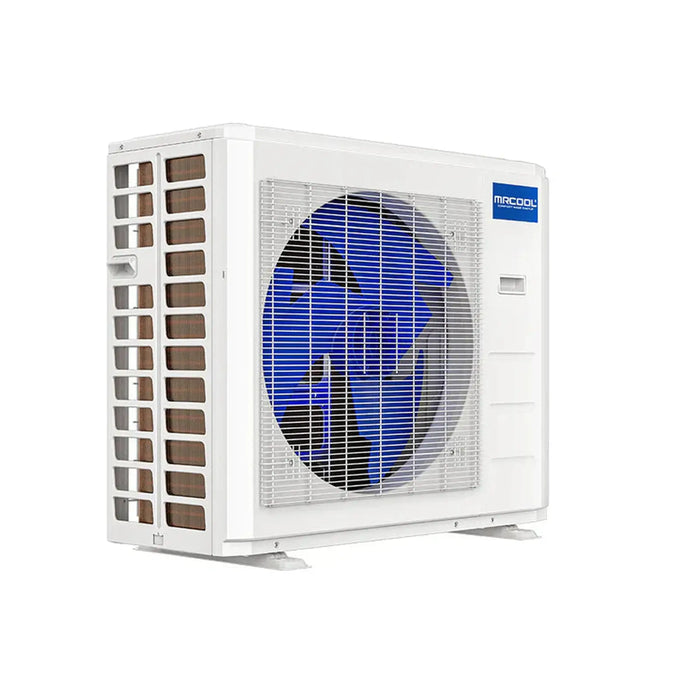

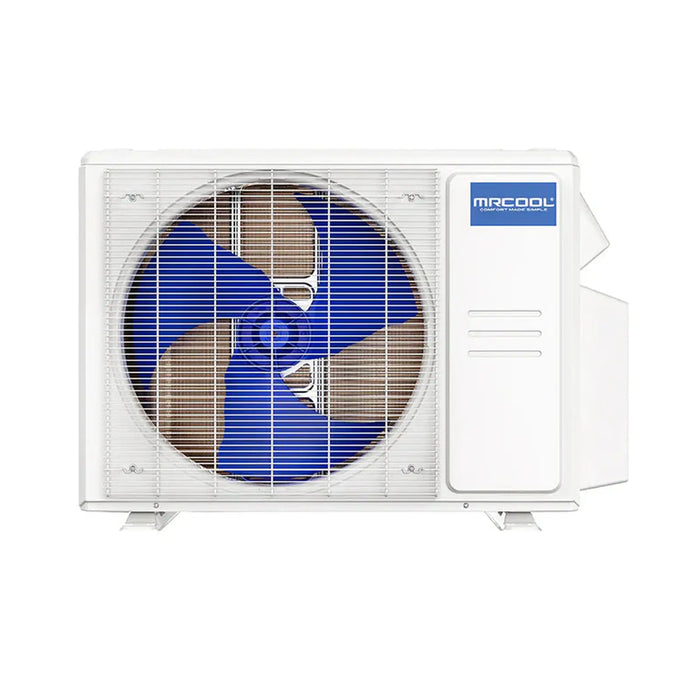

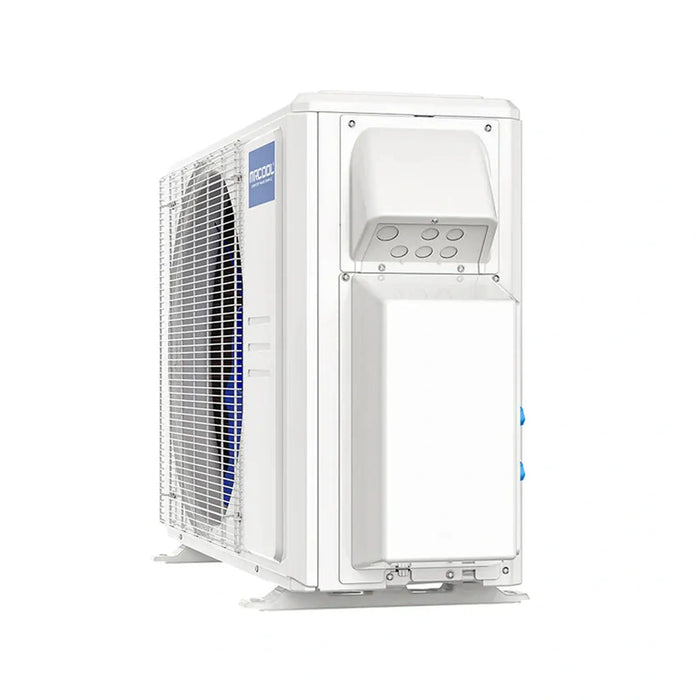

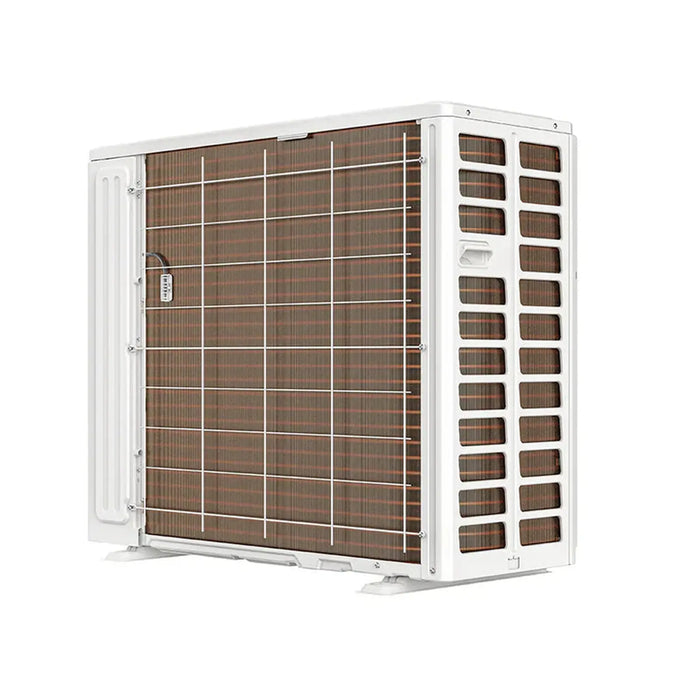

Condenser

• Energy Efficient: 21.5 SEER efficiency rating when paired with select MRCOOL air handlers.
• All-Weather Performance: Capable of heating even at temperatures as low as -13°F.
• Lifetime Warranty: Limited lifetime compressor warranty through the MRCOOL Care Program.

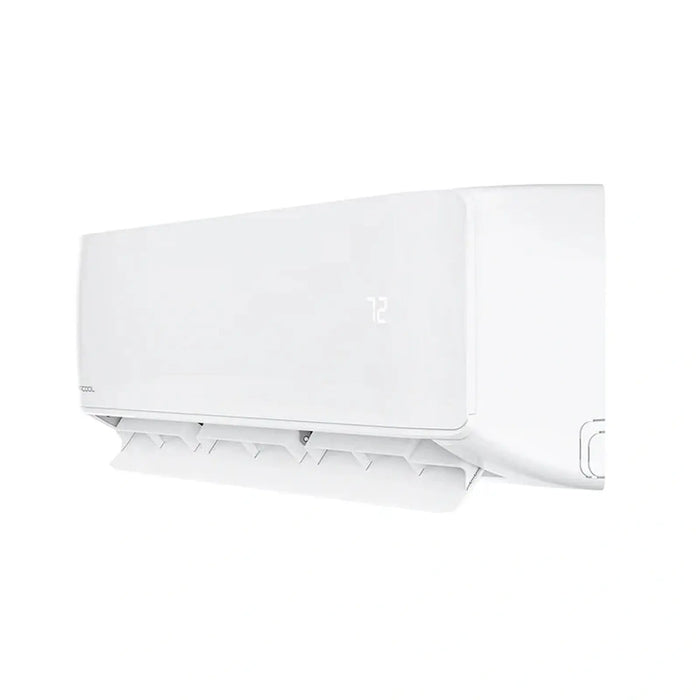

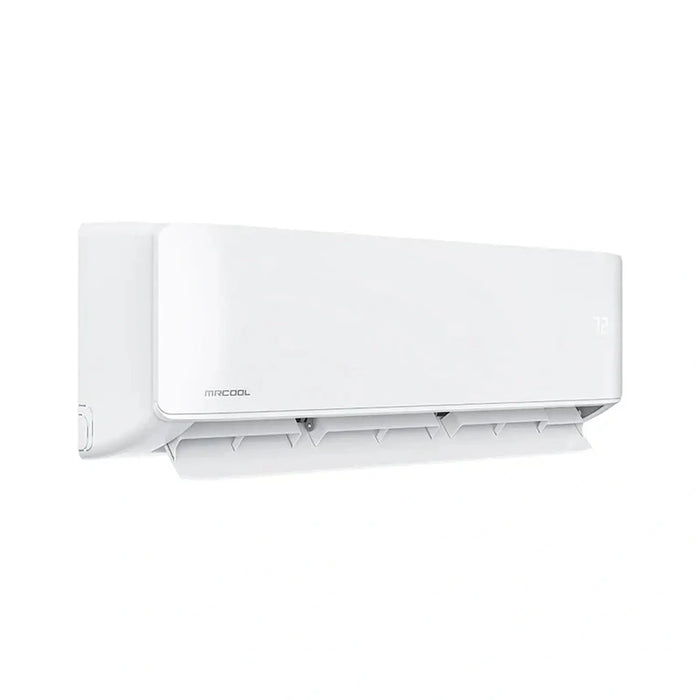

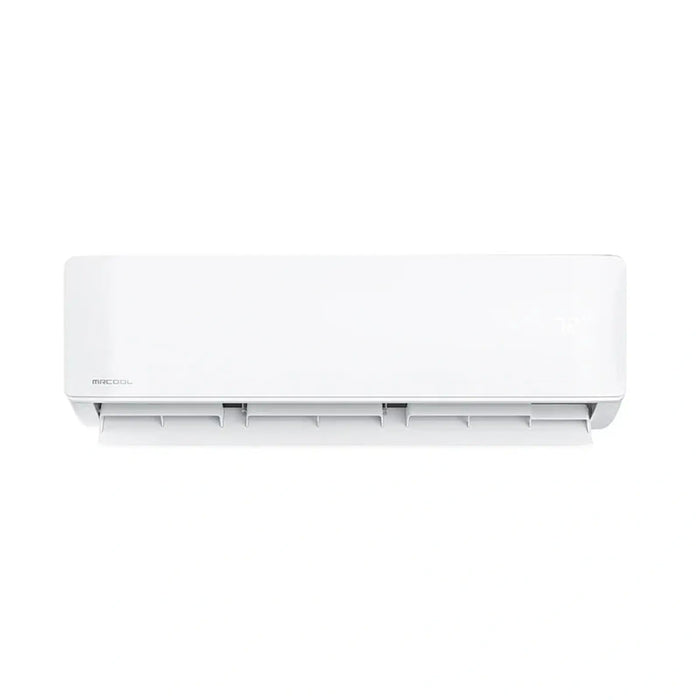

Air Handler, 9K BTU (x2)

• Coverage Area: Up to 375 sq. ft.
• Versatile Operation Modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
• Smart Control: Can be controlled via Apple or Android smartphones through the Smart HVAC app.

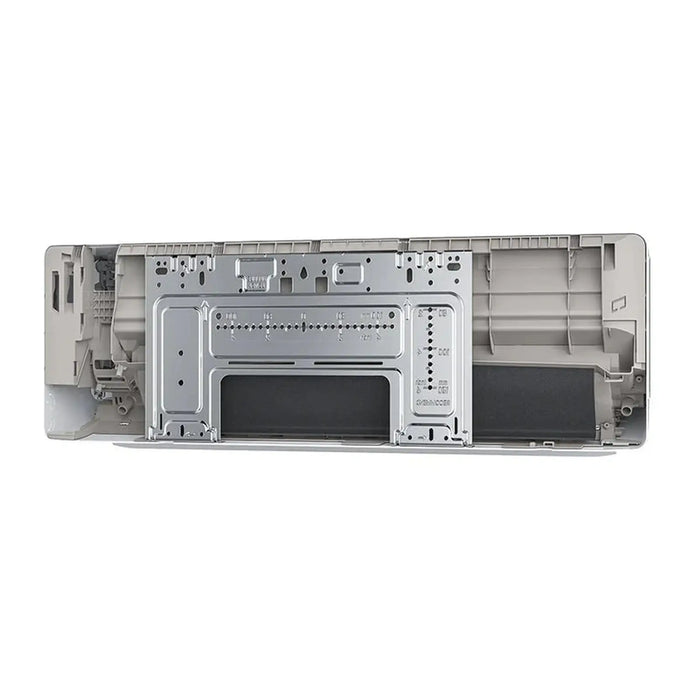

• Easy Installation: Light, compact design with an included mounting plate for easy installation on most interior walls.

Air Handler, 18K BTU (x1)

• Coverage Area: Up to 750 sq. ft.
• Versatile Operation Modes: COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
• Smart Control: Can be controlled via Apple or Android smartphones through the Smart HVAC app.
• Easy Installation: Light, compact design with an included mounting plate for easy installation on most interior walls.

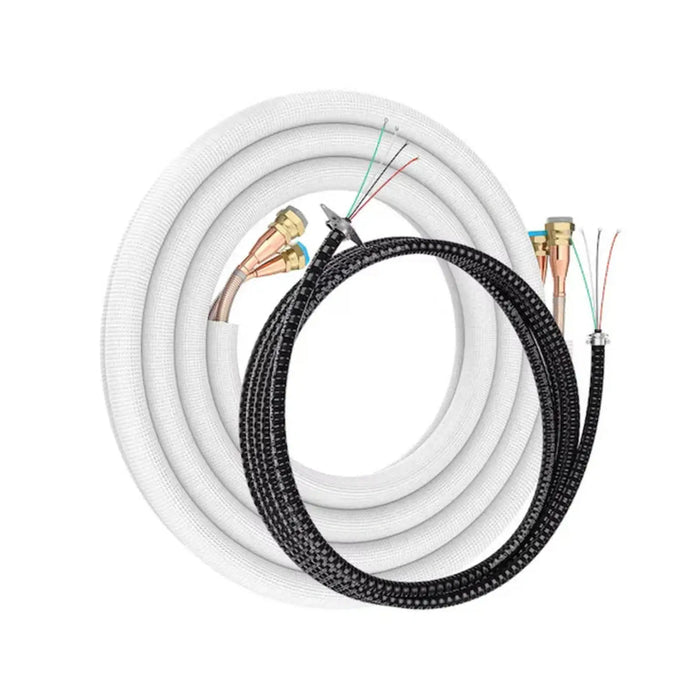

Line Set 25 ft. (x3)

• Purpose: Connects the MRCOOL Condenser to the Air Handlers.
• Pre-Charged: Pre-charged with R-410A refrigerant.
• DIY Installation: Enables installation without a certified technician, saving costs.

Additional Line Sets & Coupler

• Extended Length: Additional line sets are available if default lengths are insufficient.
• Coupler Kit: Allows two standard line sets to be connected for extended reach.

Installation Tools Included

• Mounting Plate (for air handlers)
• Anchors and Screws
• Remote Control and Holder (optional)
• MRCOOL Mini-Stat and User Manual (optional)
• Magnetic Ring (optional)
• Line-Set Adapter Set (included with 4-zone & 5-zone systems only)
• Batteries
• Air Freshening Filter
• Seal (for cooling & heating models)
• Allen Wrench
• Installation & Owner’s Manual
• Remote Control Manual
• Smart Controller Kit
• Plastic Wall Sleeve
• Sound Deadening Pads
• Drain Pipe
• Cardboard Mounting Plate Template

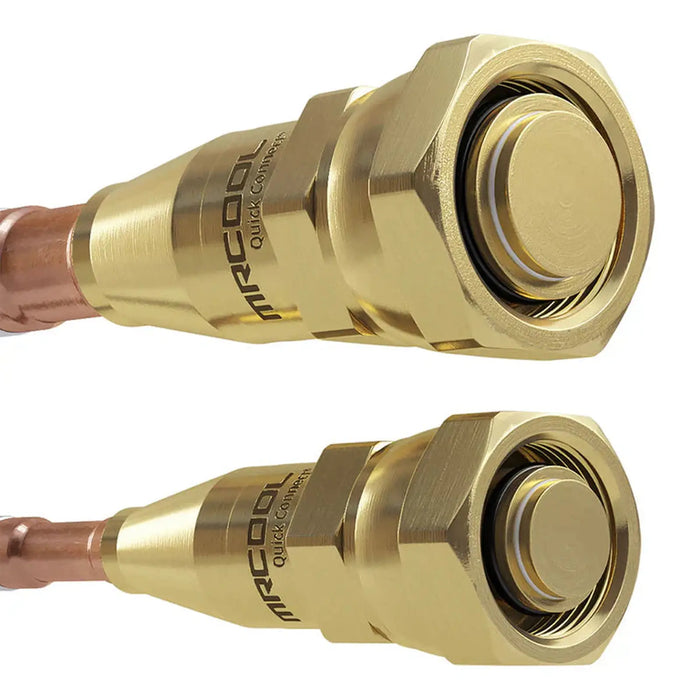

• Quick Connect Line Set (refrigerant pipe)
• Insulation Material
• Non-Adhesive U.V. Tape
• Drain Joint
• Neoprene
