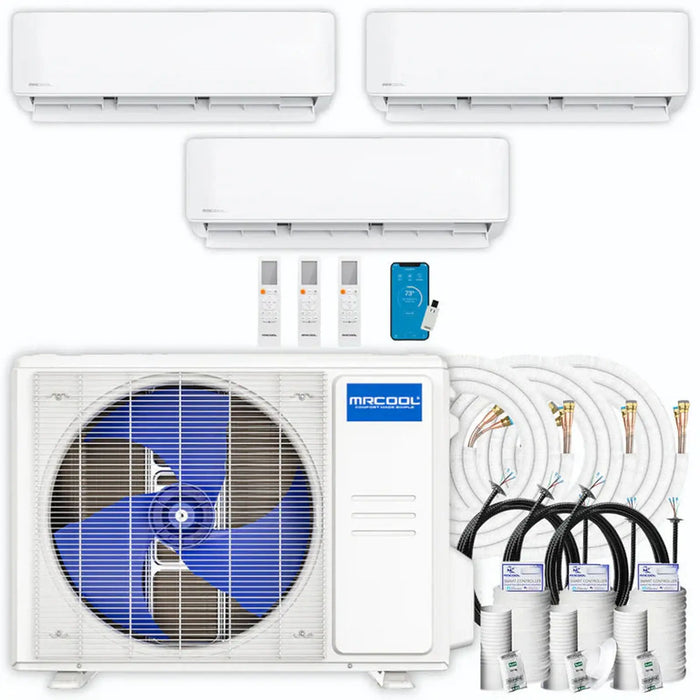

Discover the 4th Generation MRCOOL Mini Split, an all-inclusive solution designed to cool and heat up to three different rooms. This package includes the DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, two 12,000 BTU Wall Mounted Air Handlers, three Remotes, and three 16 ft. Installation Kits. And the best part? You can handle the installation yourself!
Package Includes:
- MRCOOL DIY Multi-Zone 3-Zone 27K BTU Condenser, 4th Gen Series, SKU: DIY-MULTI3-27HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, SKU: DIY-09-HP-WMAH-230C25
- MRCOOL DIY 12k BTU Ductless Mini Split Air Handler, Energy Star, 4th Gen, SKU: DIY-12-HP-WMAH-230C25 (x2)
- MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, SKU: DIY16-1412 (x3)
Note: Linesets are not included; remember to purchase them separately!
Condenser:
-
Energy Efficiency: This 3 Zone condenser, when paired with select MRCOOL air handlers, can achieve an impressive 22 SEER efficiency rating.
-
All-Weather Performance: Capable of heating even when temperatures drop to -13°F.
-
Lifetime Warranty: For added peace of mind, this condenser offers a limited lifetime compressor warranty. Simply register for the MRCOOL Care Program to activate the lifetime warranty.
Air Handler, 9K BTU, Quantity 1:
-
Large Coverage Area: Covers up to 375 sq. ft.
-
Versatility: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
User-Friendly Control: Easily controlled via your Apple or Android smartphone using the Smart HVAC app.
-
Convenient Installation: Its light and compact design enables easy installation on most interior walls using the included mounting plate.
Air Handler, 12K BTU, Quantity 2:
-
Large Coverage Area: Each handler covers up to 500 sq. ft.
-
Versatility: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
User-Friendly Control: Can be conveniently controlled via your Apple or Android smartphone using the Smart HVAC app.
-
Convenient Installation: Easily installed on most interior walls using the included mounting plate.
Line Set 16 ft., Quantity 3:
- This 16 ft. copper line set connects the MRCOOL Condenser to the MRCOOL Air Handlers, ensuring proper system function.
-
Pre-Charged: These line sets come pre-charged with the precise amount of R-410A refrigerant.
-
DIY & Save Money: Installation can be performed without the need for a certified technician, saving you money.
Additional Line Sets & Coupler:
- Additional line sets and a coupler kit are available for purchase if the default line set lengths are not sufficient for your application.
What Does This Package Include?
In addition to the main components, this package also includes installation-friendly tools and accessories:
- Mounting plate (for the air handlers)
- Anchor
- Mounting plate screws
- Remote control
- Fixing screw for remote controller holder (optional)
- Remote control holder (optional)
- MRCOOL Mini-Stat (optional)
- MRCOOL Mini-Stat User Manual (optional)
- Magnetic Ring (optional)
- Line-Set Adapter Set (Included with 4-zone & 5-zone systems only)
- Batteries
- Air Freshening Filter
- Seal (for cooling & heating models)
- Allen Wrench
- Installation & Owner’s Manual
- Remote Control Manual
- Smart Controller Kit
- Plastic Wall Sleeve
- Sound Deadening Pads
- Drain Pipe
- Cardboard Mounting Plate Template
- Quick Connect® Line Set (refrigerant pipe)*
- Insulation Material
- Non-Adhesive U.V. Tape
- Drain joint
- Neoprene.
