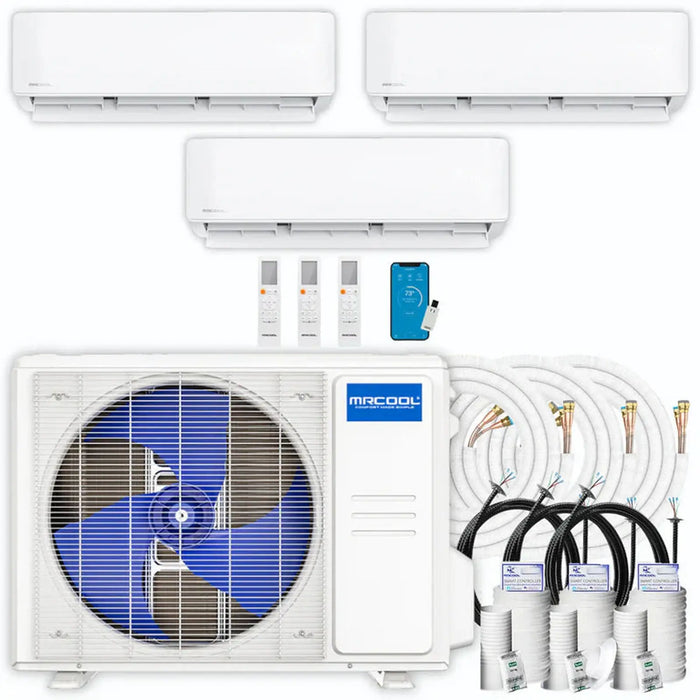

This 4th Generation MRCOOL Mini Split system includes everything you need to cool and heat three different rooms. The package includes a DIY 36,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handlers, one 12,000 BTU Wall Mounted Air Handler, three remotes, and three 50 ft. installation kits. The best part is that you can install it yourself! This system features enhanced Wi-Fi engineering, making setup not only quick and easy, but also flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.
Package Includes:
-
MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series: DIY-MULTI4-36HP230C
-
MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-09-HP-WMAH-230C25 (x2)
-
MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi: DIY-12-HP-WMAH-230C25
-
MRCOOL DIY 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, 4th Generation: DIY50-1412C (x3)
Condenser:
-
Energy Efficient: This 4-zone condenser, when paired with select MRCOOL air handlers, achieves an impressive 21.5 SEER efficiency rating.
-
Works In All Environments: Capable of heating even when temperatures drop to -13°F.
-
Lifetime Warranty: This is the only condenser on the market with a limited lifetime compressor warranty. Simply register with the MRCOOL Care Program to get the lifetime warranty.
Air Handler, 9K BTU, Quantity 2:
-
Large Coverage Area: Covers an area up to 375 sq. ft.
-
Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: Can be controlled via the Smart HVAC app on Apple or Android smartphones.
-
Convenient Installation: Light and compact design allows for easy installation on most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 1:
-
Large Coverage Area: Covers an area up to 500 sq. ft.
-
Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
-
Easy to Control: Can be controlled via the Smart HVAC app on Apple or Android smartphones.
-
Convenient Installation: Light and compact design allows for easy installation on most interior walls with the included mounting plate.
Line Set 50 ft., Quantity 3:
-
Functionality: Connects the 4th Generation MRCOOL Condenser to the MRCOOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system functions properly.
-
Pre-Charged: These line sets come pre-charged with the precise amount of R-410A refrigerant.
-
DIY & Save Money: Allows for installation without hiring a certified technician, saving you money.
Additional Line Sets & Coupler:
If the default line set lengths are insufficient for your application, additional line sets are available for purchase. You will also need a coupler kit to connect two standard line sets together.
What does this package include?
This package also includes installation-friendly tools: Mounting plate (for the air handlers), Anchor, Mounting plate screws, Remote control, Fixing screw for remote controller holder (optional), Remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), Magnetic Ring (optional), Line-Set Adapter Set (Included with 4-zone & 5-zone systems only), Batteries, Air Freshening Filter, Seal (for cooling & heating models), Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit, Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe, Cardboard Mounting Plate Template, Quick Connect Line Set (refrigerant pipe), Insulation Material, Non-Adhesive U.V. Tape, Drain joint, and Neoprene.
