MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 16 ft. and 35 ft. Install Kit, DIYM227HPW02C02

The 4th Generation MRCOOL Mini Split System provides efficient cooling and heating for two rooms. This DIY-friendly package includes all necessary components for easy installation without specialized tools or expensive equipment, enhanced by Wi-Fi capabilities for convenient setup.

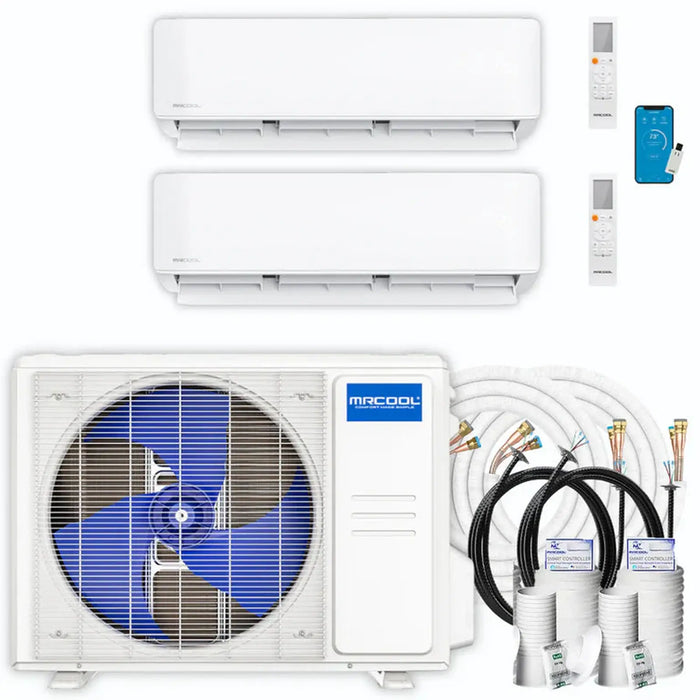

Package Includes

• Condenser

  • DIY 27,000 BTU Multi-Zone Condenser

• Air Handlers

  • Two 12,000 BTU Wall Mounted Air Handlers
  • Two Remotes

• Installation Kits

  • One 16 ft. Installation Kit
  • One 35 ft. Installation Kit

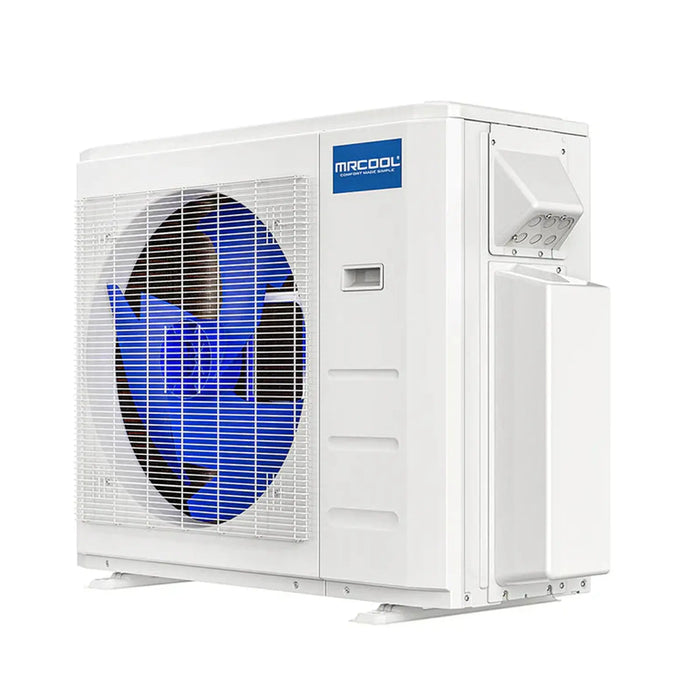

Condenser

• Energy Efficient: Achieves a 22 SEER efficiency rating.
• Works in All Environments: Operates in temperatures as low as -13°F.
• Lifetime Warranty: Limited lifetime compressor warranty available through MRCOOL Care Program.

Air Handlers (12K BTU, Quantity 2)

• Large Coverage Area: Effective up to 500 sq. ft.
• Versatile Operation: Modes include COOL, HEAT, AUTO, DRY, and SLEEP.
• Smart Control: Operable via Apple or Android smartphone using the Smart HVAC app.
• Easy Installation: Compact design with included mounting plate for simple wall installation.

Line Sets

16 ft. Line Set (Quantity 1)

• Connection: Connects MRCOOL Condenser to Air Handlers.
• Pre-Charged: Includes R-410A refrigerant.
• DIY Installation: No certified technician needed.

35 ft. Line Set (Quantity 1)

• Connection: Connects MRCOOL Condenser to Air Handlers.
• Pre-Charged: Includes R-410A refrigerant.
• DIY Installation: No certified technician needed.

Additional Line Sets & Couplers

• Customization: Additional line sets available for purchase if needed.
• Coupler Kit: Required to connect two standard line sets.

Installation Tools & Accessories

• Mounting Plate (for air handlers)
• Anchor and Mounting Plate Screws
• Remote Control and Holder
• MRCOOL Mini-Stat (optional)
• Magnetic Ring (optional)
• Line-Set Adapter Set (for 4-zone & 5-zone systems)
• Batteries, Air Freshening Filter
• Seal (for cooling & heating models)
• Allen Wrench, Installation & Owner’s Manual
• Remote Control Manual, Smart Controller Kit
• Plastic Wall Sleeve, Sound Deadening Pads
• Drain Pipe, Cardboard Mounting Plate Template
• Quick Connect Line Set (refrigerant pipe)
• Insulation Material, Non-Adhesive U.V. Tape
• Drain Joint, Neoprene
