MRCOOL DIY Mini Split - 24,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit, DIYM227HPW02C07

The 4th Generation MRCOOL Mini Split system provides efficient cooling and heating for two rooms. It includes all necessary components for a DIY installation, featuring enhanced Wi-Fi for easy setup and flexible installation options without specialized tools.

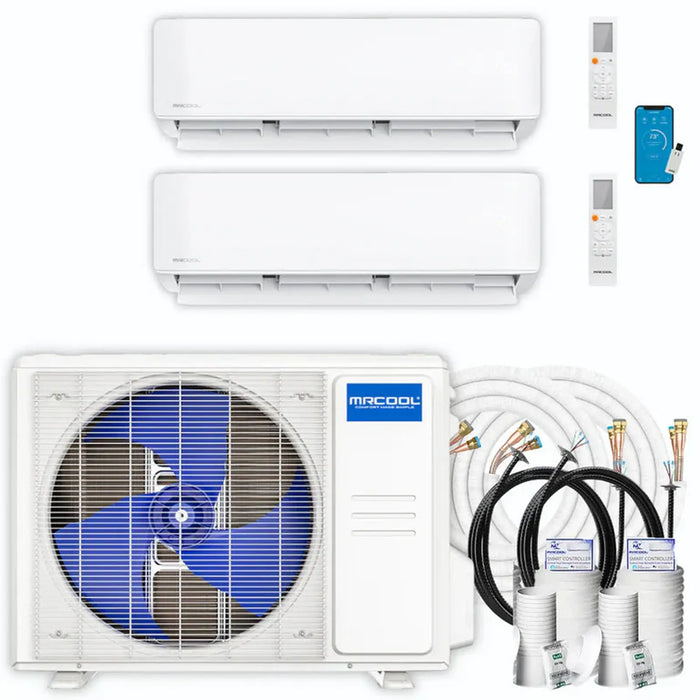

Package Includes

• DIY 27,000 BTU Multi-Zone Condenser
• Two 12,000 BTU Wall Mounted Air Handlers
• Two Remotes
• Two 25 ft. Installation Kits

Condenser

• Energy Efficient: Achieves a 22 SEER efficiency rating with select MRCOOL air handlers.
• Works in All Environments: Capable of heating in temperatures as low as -13°F.
• Lifetime Warranty: Limited lifetime compressor warranty available through the MRCOOL Care Program.

Air Handler (12,000 BTU, Quantity 2)

• Large Coverage Area: Covers up to 500 sq. ft.
• Versatile: Multiple operating modes including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
• Easy to Control: Can be controlled via Apple or Android smartphones using the Smart HVAC app.
• Convenient Installation: Light and compact design with an included mounting plate.

Line Set (25 ft., Quantity 2)

• Connection: Connects the MRCOOL Condenser to the Air Handlers.
• Pre-Charged: Contains the precise amount of R-410A refrigerant.
• DIY Installation: Can be installed without a certified technician.

Additional Line Sets & Coupler

• Customization: Additional line sets and coupler kits are available if the default lengths are insufficient.

Additional Installation Tools

• Mounting Plate: For air handlers.
• Anchor & Mounting Plate Screws
• Remote Control & Holder (optional)
• MRCOOL Mini-Stat (optional)
• Magnetic Ring (optional)
• Line-Set Adapter Set: Included with 4-zone and 5-zone systems.
• Batteries, Air Freshening Filter, Seal: For cooling and heating models.
• Allen Wrench, Installation & Owner’s Manual, Remote Control Manual, Smart Controller Kit
• Plastic Wall Sleeve, Sound Deadening Pads, Drain Pipe
• Cardboard Mounting Plate Template
• Quick Connect® Line Set (refrigerant pipe)
• Insulation Material, Non-Adhesive U.V. Tape, Drain Joint, Neoprene

This comprehensive kit ensures that the MRCOOL Mini Split system is ready for straightforward, efficient installation and operation.
