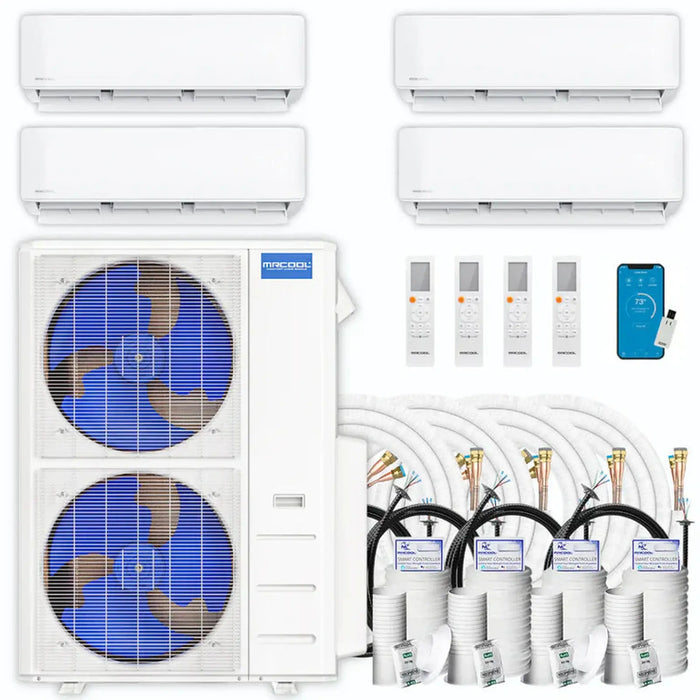

This 4th Generation MRCOOL Mini Split provides a comprehensive solution for cooling and heating four different rooms. Included in the package are the following components: a DIY 48,000 BTU Multi-Zone Condenser, two 9,000 BTU Wall Mounted Air Handlers, two 12,000 BTU Wall Mounted Air Handlers, four Remotes, and four 16 ft. Installation Kits. The standout feature of this system is its DIY installation capability, allowing you to set it up yourself. Enhanced Wi-Fi engineering facilitates a hassle-free setup process, and the MRCOOL DIY Multi is flexible enough to be installed virtually anywhere without requiring specialized tools or expensive equipment.
Package Includes:
- MRCOOL DIY Multi Zone 5-Zone Condenser, 4th Gen Series, DIY-MULTI5-48HP230C
- MRCOOL DIY 4th Generation 9K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-09-HP-WMAH-230C25 (x2)
- MRCOOL DIY 4th Generation 12K BTU Wall Mount Air Handler 230 Volt with Enhanced WiFi, DIY-12-HP-WMAH-230C25 (x2)
- MRCOOL 16ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor, DIY16-1412 (x4)

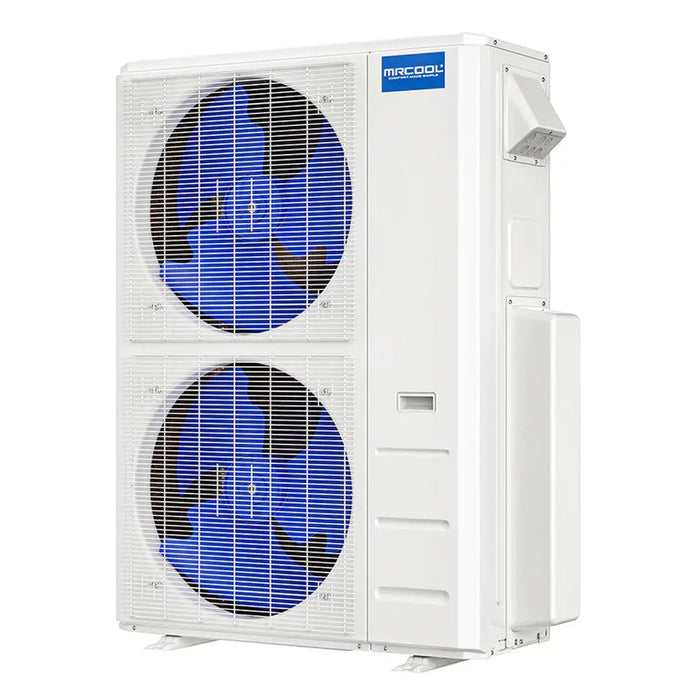

Condenser:
- Energy Efficient: This 5 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 20.5 SEER efficiency rating.
- Works In All Environments: The ability to heat even when temperatures drop to -13°F.
- Lifetime Warranty: For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!
Air Handler, 9K BTU, Quantity 2:
- Large Coverage Area: Handler covers an area up to 375 sq. ft.
- Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control: Can be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation: With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Air Handler, 12K BTU, Quantity 2:
- Large Coverage Area: Handler covers an area up to 500 sq. ft.
- Versatile: Equipped with multiple operating modes, including COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
- Easy to Control: Can be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
- Convenient Installation: With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.
Line Set 16 ft., Quantity 4:
- This 16 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
- Pre-Charged: These line sets come pre-charged with the precise amount of R-410A refrigerant.
- DIY & Save Money: The installation process can be performed without retaining the services of a certified technician - thus saving you money!
Additional Line Sets & Coupler:
- If you find the default line set lengths are not sufficient for your application, additional line sets are available for purchase. You will also need a coupler kit, which will allow two standard line sets to be connected together.
What does this package include? This package also includes installation-friendly tools such as a mounting plate (for the air handlers), anchor, mounting plate screws, remote control, fixing screw for remote controller holder (optional), remote control holder (optional), MRCOOL Mini-Stat (optional), MRCOOL Mini-Stat User Manual (optional), magnetic ring (optional), line-set adapter set (Included with 4-zone & 5-zone systems only), batteries, air freshening filter, seal (for cooling & heating models), Allen wrench, installation & owner’s manual, remote control manual, smart controller kit, plastic wall sleeve, sound deadening pads, drain pipe, cardboard mounting plate template, Quick Connect Line Set (refrigerant pipe)*, insulation material, non-adhesive U.V. tape, drain joint, and neoprene.
